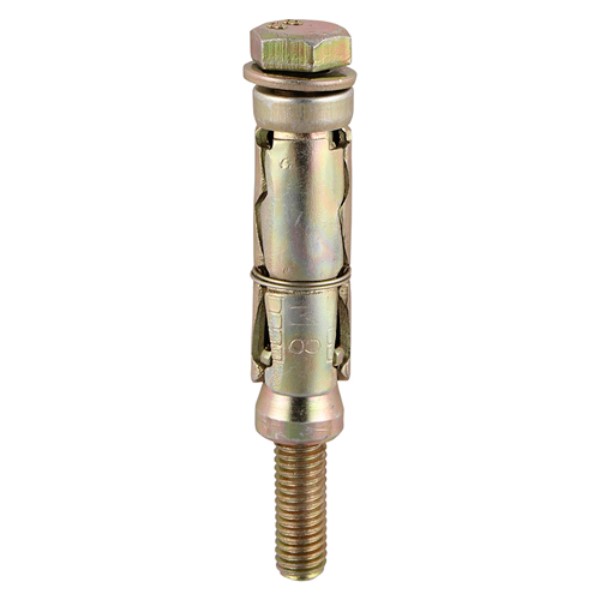

TIMCO M10:75L SHIELD ANCHOR LOOSE BOLT 1075LSH (25)

Ideal for fixing through the fixture once the shield has been installed into substrate. Compatible with most types of metric threaded components. A three segmented expansion anchor used in concrete, brick or stone. Torque controlled. TECHNICAL DATA: Bolt Length mm: 135 Centre Spacing mm: 180 Corrosion Rating: 1 - Clean, dry; low humidity environments Drill Hole Dia. mm: 16 Edge Distance mm: 90 Fixture Hole Diameter mm: 12 Max Fixture Thickness mm: 75 Min Drill Hole Depth mm: 70 Point Type: B Point Shield Length mm: 60 Socket Size mm: 17 Substrates: Concrete, Brick, Stone Thread Dia. mm: M10 Thread Type: Metric Type: Loose Washer Size mm: M10
